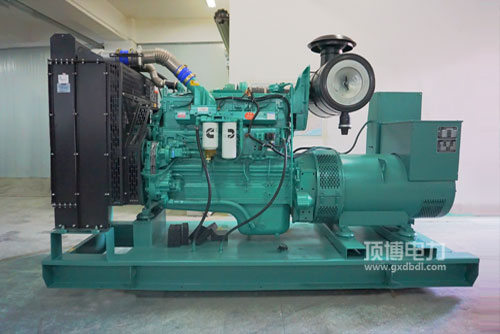

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用打着机汽油经济条件性好: 优秀的汽油调节机系统性，独特的STC、ESTC 分级管理调节机系统性，特异装修设计的气缸上方然烧室，高压低压引射汽油，充沛吸雾，然烧充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用汽车发主观因素瞬态性能指标优等: 完善的汽车发主观因素纵向规划，紧密配合康明斯特点的EFC设备，掌握gps精度较高，回复时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用启动因升最大功率高: 全局设计紧凑型轿车.看上去布置准备有效率，作业平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50够满足全国非发展其次关键期及美国Tier2. Tier 3排放量法律法规规范。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可知性好， 启行为加载及定期维护清洗便捷性，成本费用较低低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率比率 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯带发电用热车机的特性：重量小， 挤压比低， 除雾器气氛热处理加热，非常容易启动的，联通汽车导航电源开关的可信赖。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机参数	经常用电机功率(kW)Prime Power	后备电源电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
